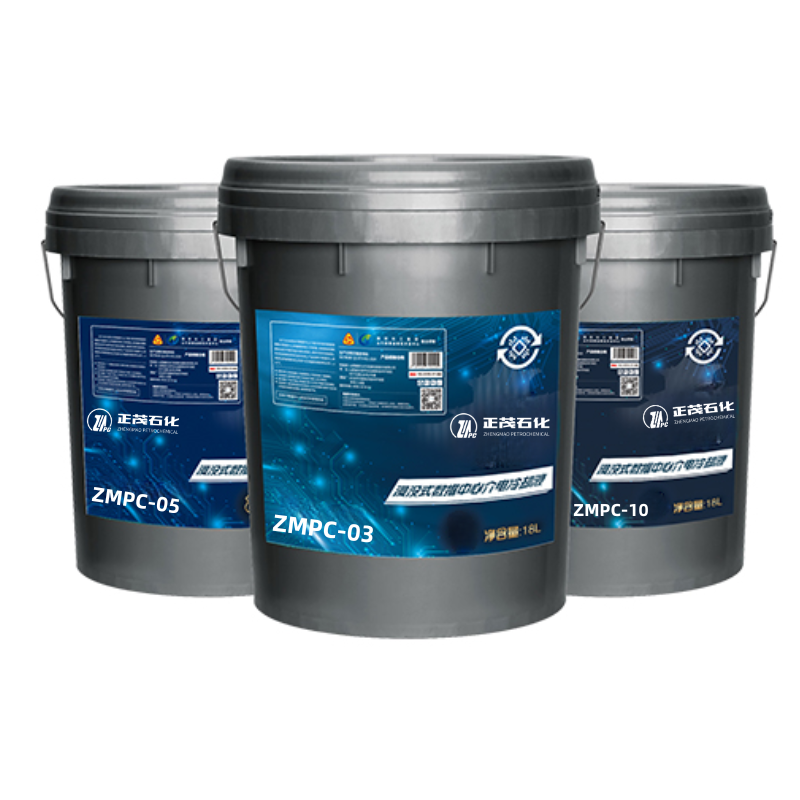

Immersion Cooling Fluid for Energy Storage Systems
ZMPC
ZMPC-05
ZMPC Immersion Cooling Fluid for Energy Storage is developed based on the working principle of direct-contact lithium battery thermal management systems. Formulated with ZMPC’s coal-based base oil and proprietary additives, it offers excellent dielectric strength, superior thermal conductivity, and outstanding low-temperature flowability, ensuring optimal system performance under extreme operating conditions.
Safety & Reliability:
High flash point and low viscosity with excellent thermal performance. Superior heat absorption and dissipation maintain system temperature balance, enhancing safety.
Long-Term Insulation:
Dielectric strength far exceeds operational voltage levels, ensuring stable insulation performance.
Material Compatibility:
Free from mineral oil and aromatics; compatible with metals and non-metals used in energy storage equipment.
Stable Performance:
Blended with long-life additives to prevent varnish or residue formation on battery components.
Specially designed for high-heat and high-load energy storage systems, providing advanced heat management and safety solutions.
Widely used in large-scale lithium battery energy storage, commercial, and residential ESS (Energy Storage Systems).
Typical Properties (English Data Table)
| Test Item | ZMPC-02 | ZMPC-03 | ZMPC-04 | Test Method |
|---|---|---|---|---|
| Appearance | Colorless Transparent Liquid | Colorless Transparent Liquid | Colorless Transparent Liquid | Visual |
| Density (20°C, kg/m³) | 796.4 | 806 | 813.3 | GB/T 1884 |
| Kinematic Viscosity (-20°C, mm²/s) | 84.7 | 183.9 | 435.2 | GB/T 265 |
| Kinematic Viscosity (20°C, mm²/s) | 12.38 | 21.12 | 38.54 | GB/T 265 |
| Kinematic Viscosity (40°C, mm²/s) | 6.528 | 11.2 | 17.88 | GB/T 1995 |
| Pour Point (°C) | -69 | -63 | -60 | GB/T 3535 |
| Flash Point (°C, open cup) | 180 | 208 | 240 | GB/T 3536 |
| Dielectric Breakdown Voltage (kV, new oil) | 73 | 84 | 78 | IEC 60156 |
| Specific Heat Capacity (20°C, KJ/kg·K) | 2.02 | 2.05 | 2.07 | ASTM D7896 |
| Thermal Conductivity (20°C, W/m·K) | 0.1408 | 0.1496 | 0.1543 | ASTM D7896 |
